P97 Roller shutter

P97 Roller shutter with curved interlocking slats: A robust and silent closure solution.

The P97 Roller Shutter is a reliable and high-performance solution for effectively securing shops, storefronts, and industrial premises.

Made from hot-dip galvanized steel, it features curved interlocking slats with enhanced rigidity, making the curtain especially resistant to impact and intrusion.

With its reinforced bottom slat, the P97 provides a high level of security, even for large openings. This product is particularly well suited to large dimensions.

Its design, along with compatibility with a wide range of motorization systems, allows for custom installation and seamless integration into all types of configurations and opening dimensions.

Optional colors

RAL 9010
RAL 7016
RAL 8017
RAL 9005
Galva

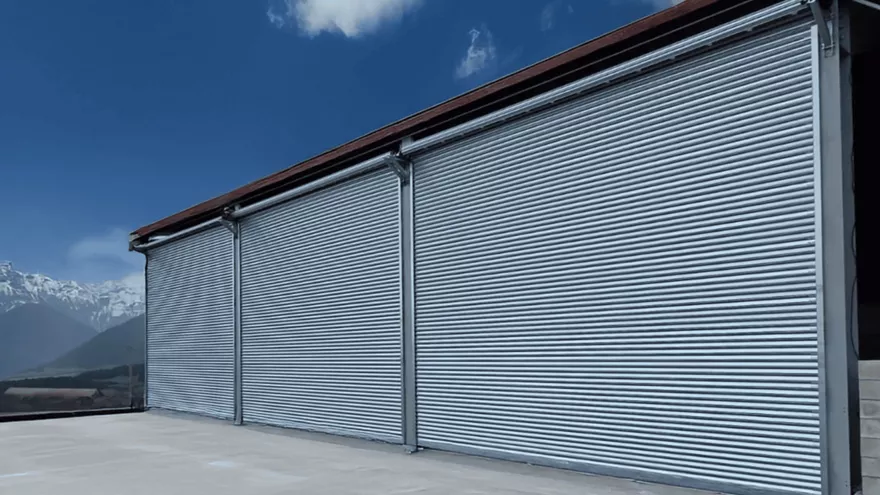

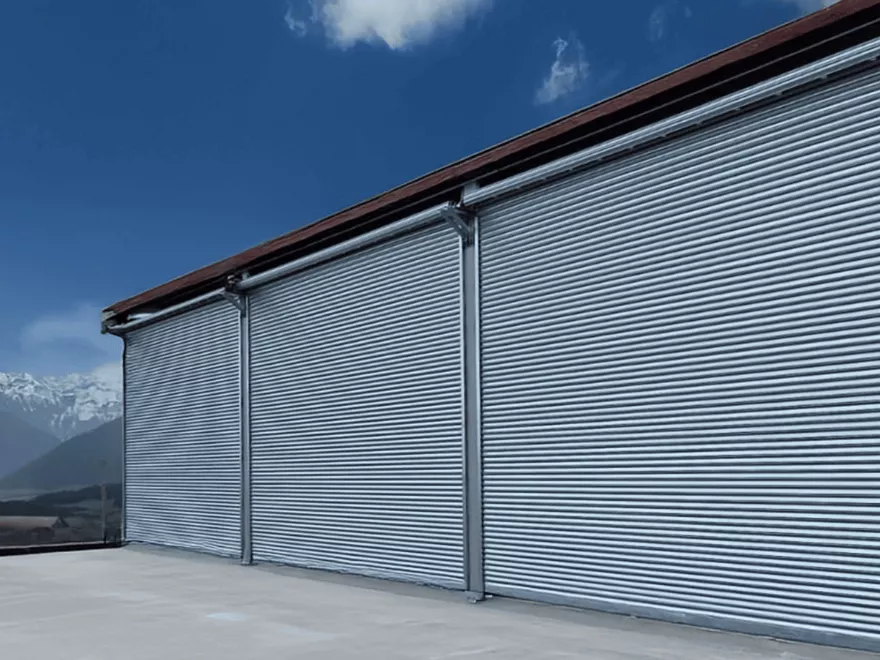

Industrial building seen from the side with a closed roller shutter.

Security
A2P certification up to CR4 level.
Very Large Dimensions
Up to 13.500mm wide.
Rigidity
The curved shape gives the P97 slat high rigidity.

Our models

P97 7/10e Standard

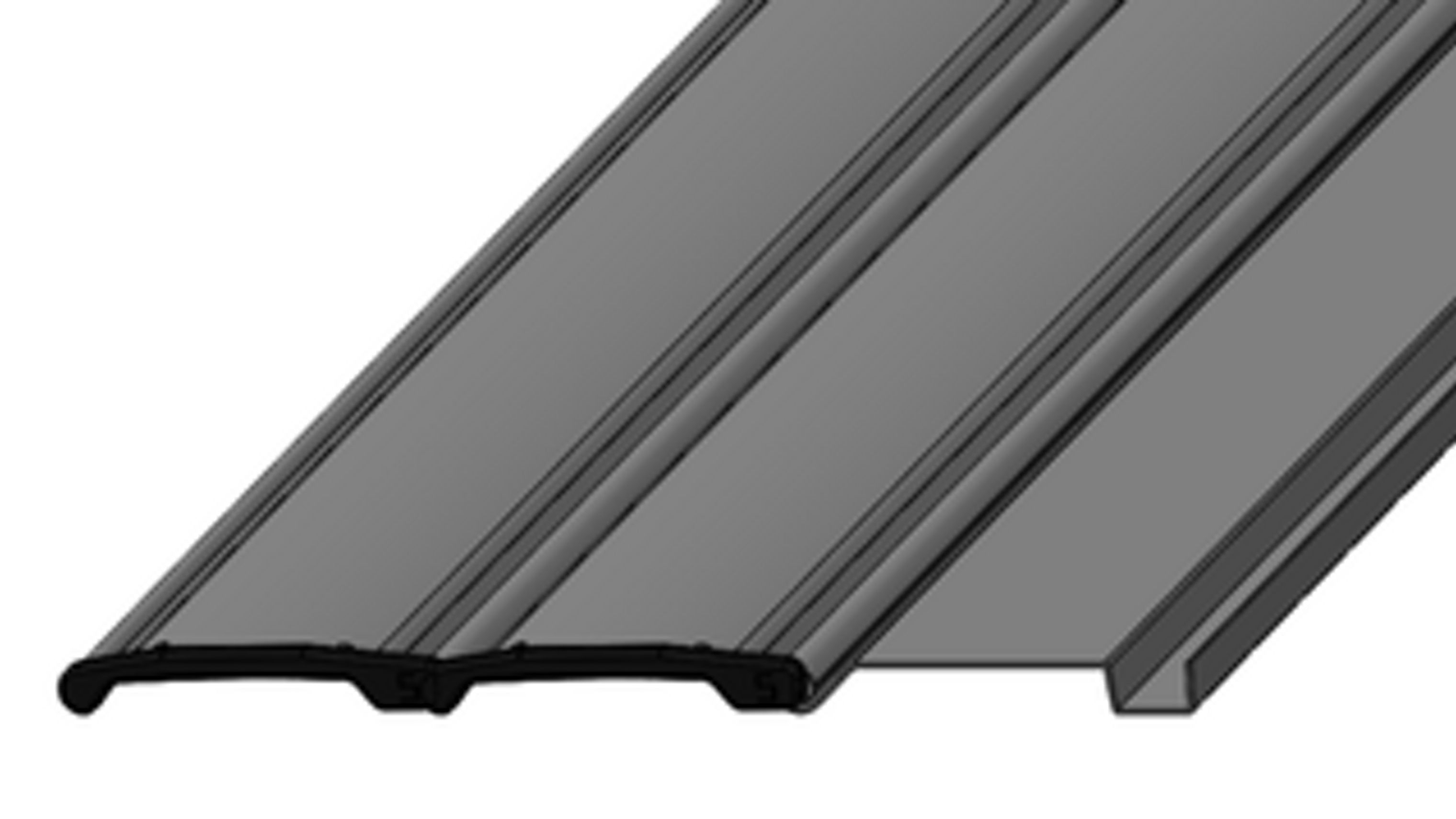

P97 9/10e Standard

Technical Information

Up to 13,500 mm wide*..
Up to 13,000 mm high*.
Curtain made of horizontal galvanized steel slats, 116 mm high.
Slats are slightly curved with an additional fold for enhanced rigidity.
Reinforced final slat: 130 mm in height, made of 2 mm (20/10) steel.
Two different slat types: ,Solid 0.7 mm (7/10) (10 kg/m²), Solid 0.9 mm (9/10) (12 kg/m²), ""Rubis"" 0.9 mm micro-perforated (10 kg/m²).
Standard finishes (pre-coated) or RAL powder-coated finish available as an option.
Slats can be fitted with vision windows.
Sides guides also made of 2 mm galvanized steel, with optional powder coating.

Curtain and side guides are cold-formed.
Various guide mounting options available, with optional sealing gaskets.
Multiple available options: Roll-up cover box (depending on configuration), lock, nylon end caps, storm protection system, etc.
Wide range of operation types: Manual, Central motor, tubular motor, direct drive, or chain drive.
Operating modes available: Deadman control, pulse control (optional), or automatic (optional).
Various A2P anti-intrusion classifications available as options.
CE-certified product in compliance with standard NF EN 13241-1.
For other dimensions, please contact us.

Type of operations

Manual operation
The manually operated roller shutter is a simple and cost-effective solution for securing commercial or industrial premises. It works without any motor, using built-in spring compensation in the shaft for smooth operation and minimal maintenance. Ideal for occasional use.
Central motor
The counterbalanced roller shutter with central motor is a reliable and cost-effective solution for securing commercial or industrial premises. Equipped with a 220V motor mounted directly on the shaft and compensation springs, it allows for easy operation. Easy to install and low-maintenance, it is ideal for standard projects.
Tubular motor
The tubular motor roller shutter is a discreet and efficient solution, ideal for low-intensity use. Its motor, integrated into the rolling shaft, saves space while ensuring smooth operation—even for large dimensions. Reliable and easy to maintain, it adapts to a wide range of configurations.
Direct drive motor
The roller shutter with direct drive motor is ideal for large dimensions and intensive use. Its side-mounted motor, directly coupled to the shaft, ensures powerful and consistent operation. Robust and durable, it also simplifies maintenance thanks to easy access.
Chain-operated motor
The roller shutter with chain-driven motorization is a robust and reliable solution, especially suited for very large sizes. Its side-mounted motor drives the winding shaft through a chain and sprocket system, ensuring efficient and powerful transmission. Ideal for industrial or logistics environments.
