Aesthetics
Combines the sleek look of flat slats with the strength of curved slats.

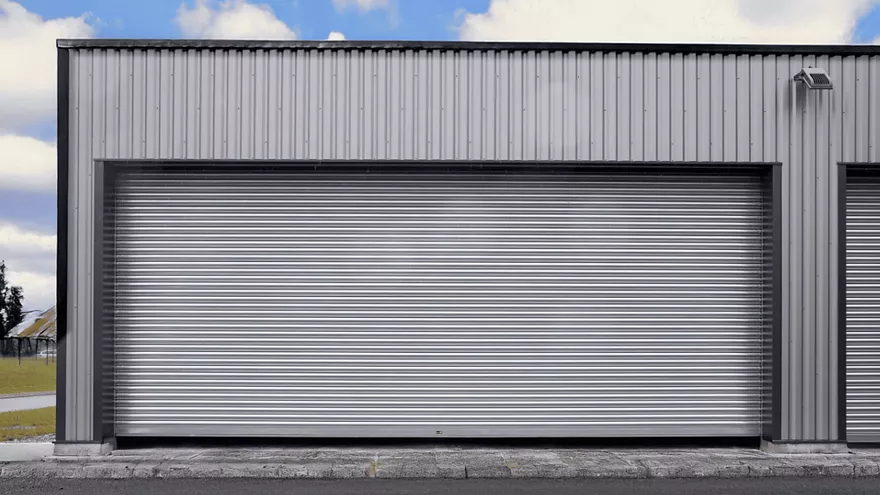

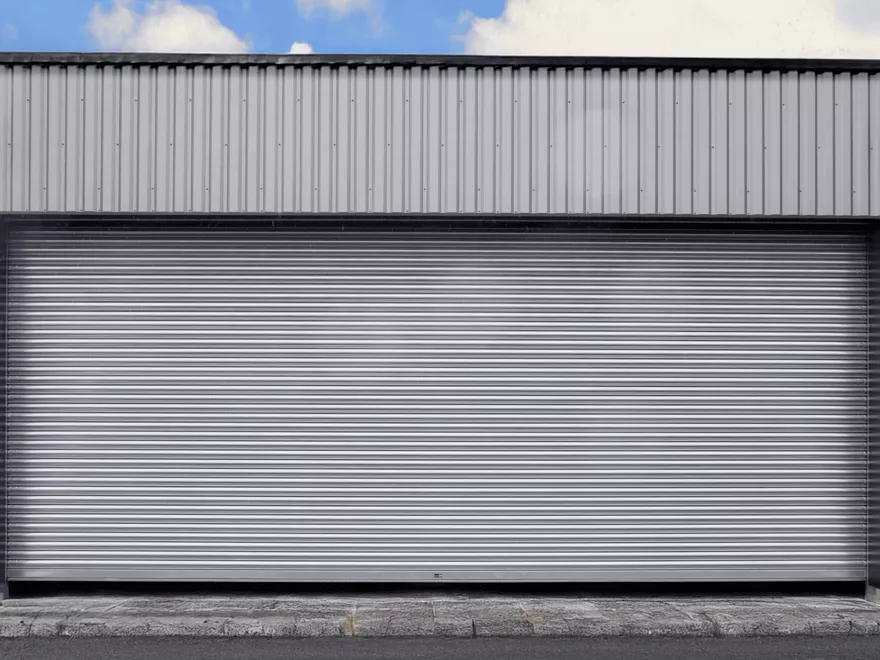

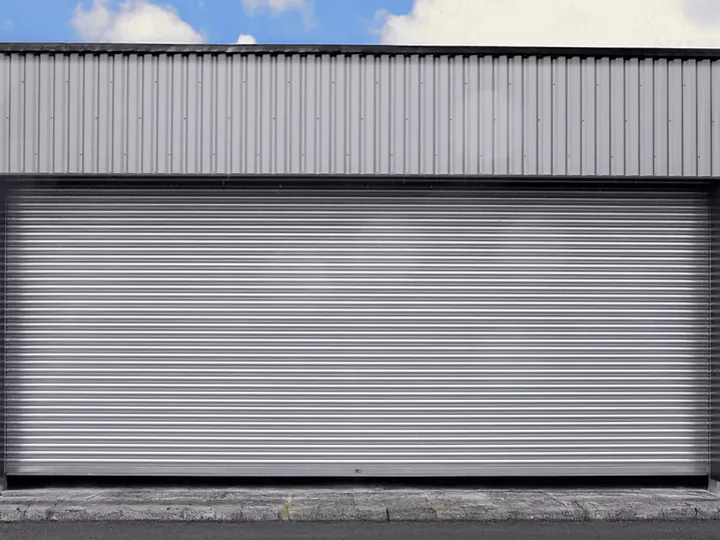

P116 Roller shutter
P116 roller shutter: Robust and aesthetic closure for commercial, industrial, and garage applications.
Looking for a reliable and secure roller shutter for your premises? The P116 roller shutter with interlocking slats is the ideal solution for protecting your storefronts, garages, or industrial spaces. Built from high-quality galvanized steel, it offers exceptional resistance to forced entry and long-term durability in all environments.
Its solid curtain, made of tightly interlocking slats, ensures maximum security, while the reinforced side guides and a wide range of optional accessories allow for easy adaptation to different installation scenarios. Whether for a new build or a renovation, the P116 is quick to install and simple to operate.
Fully compliant with European standards, this robust roller shutter can be motorized to match your specific needs — taking into account the dimensions of the opening, available installation space, frequency of use, and any site-specific requirements.
Optional colors
RAL 9010
RAL 7016
RAL 8017
RAL 9005
Galva
Customization
Wide range of finishes: pre-coated, RAL-painted, micro-perforated, with porthole windows, etc.
Versatility
Available in a wide range of sizes and motorization options.
Our models
P116 7/10e Standard
P116 9/10e Standard
P116 9/10e Rubis
Technical Information
- Up to 13,500 mm wide*.
- Up to 13,000 mm high*.
- Curtain made of horizontal galvanized steel slats, 116 mm high.
- Slats are slightly curved with an additional fold for enhanced rigidity.
- Reinforced final slat: 130 mm in height, made of 2 mm (20/10) steel.
- Different slat types: ,Solid 0.7 mm (7/10) (10 kg/m²), Solid 0.9 mm (9/10) (12 kg/m²), ""Rubis"" 0.9 mm micro-perforated (10 kg/m²).
- Standard finishes (pre-coated) or RAL powder-coated finish available as an option.
- Slats can be fitted with vision windows.
- Sides guides also made of 2 mm galvanized steel, with optional powder coating.
- Curtain and side guides are cold-formed.
- Various guide mounting options available, with optional sealing gaskets.
- Multiple available options: Roll-up cover box (depending on configuration), lock, nylon end caps, storm protection system, etc.
- Wide range of operation types: Manual, Central motor, tubular motor, direct drive, or chain drive.
- Operating modes available: Deadman control, pulse control (optional), or automatic (optional).
- Various A2P anti-intrusion classifications available as options.
- CE-certified product in compliance with standard NF EN 13241-1.
- For other dimensions, please contact us.
Documents for roller shutters and extendable grilles
Type of operations
Manual operation
The manually operated roller shutter is a simple and cost-effective solution for securing commercial or industrial premises. It works without any motor, using built-in spring compensation in the shaft for smooth operation and minimal maintenance. Ideal for occasional use.
Central motor
The counterbalanced roller shutter with central motor is a reliable and cost-effective solution for securing commercial or industrial premises. Equipped with a 220V motor mounted directly on the shaft and compensation springs, it allows for easy operation. Easy to install and low-maintenance, it is ideal for standard projects.
Tubular motor
The tubular motor roller shutter is a discreet and efficient solution, ideal for low-intensity use. Its motor, integrated into the rolling shaft, saves space while ensuring smooth operation—even for large dimensions. Reliable and easy to maintain, it adapts to a wide range of configurations.
Direct drive motor
The roller shutter with direct drive motor is ideal for large dimensions and intensive use. Its side-mounted motor, directly coupled to the shaft, ensures powerful and consistent operation. Robust and durable, it also simplifies maintenance thanks to easy access.
Chain-operated motor
The roller shutter with chain-driven motorization is a robust and reliable solution, especially suited for very large sizes. Its side-mounted motor drives the winding shaft through a chain and sprocket system, ensuring efficient and powerful transmission. Ideal for industrial or logistics environments.
