ISEA

DUO TOP

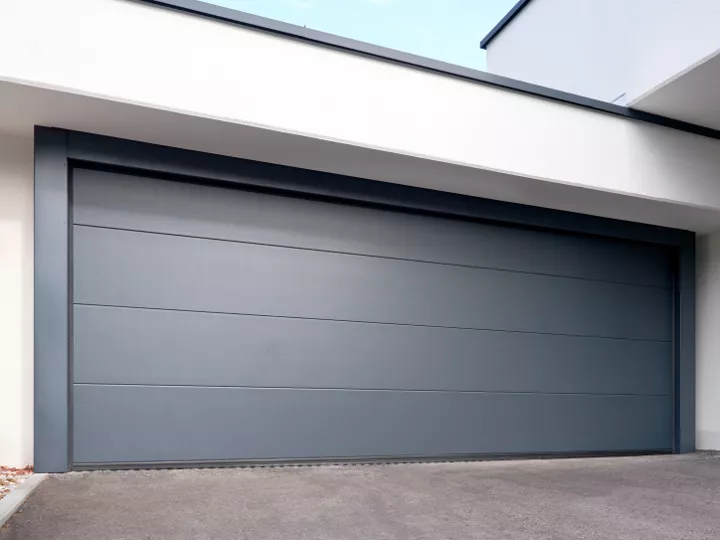

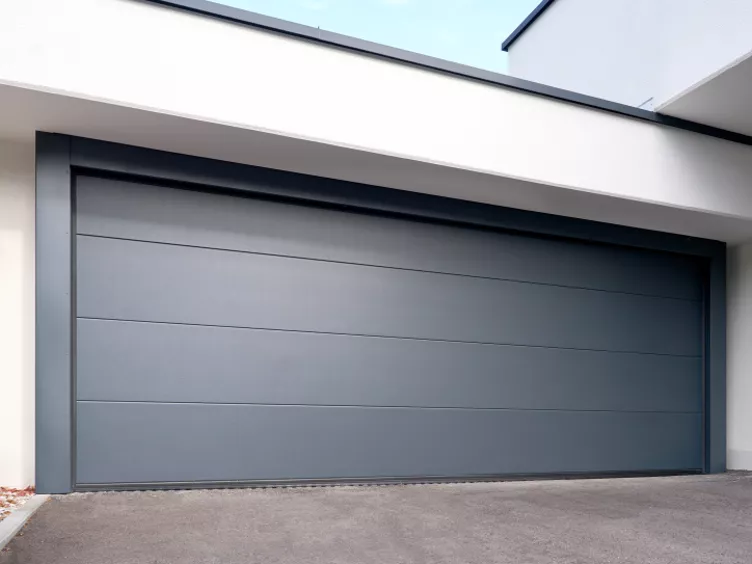

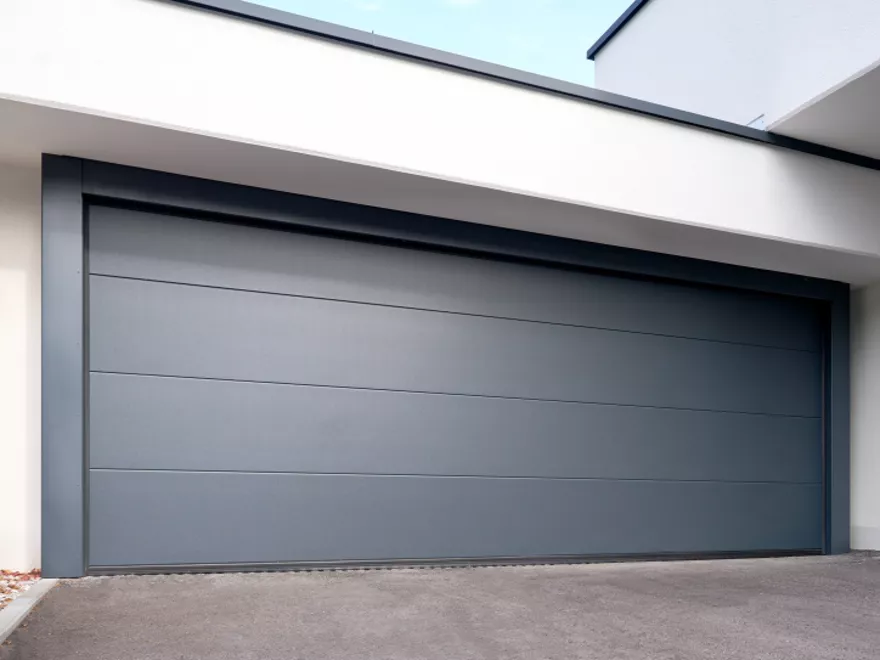

DUO TOP: garage door with tension springs.

The DUO TOP garage door stands out with its innovative design that combines aesthetics, safety, and technical performance. Custom-made and available in manual or motorized versions, it is suitable for all types of residential projects.

Equipped with double-skin steel panels injected with polyurethane foam, it offers excellent thermal insulation. Fully covered rollers and cables ensure safe operation with no risk of pinching and provide a sleek, clean finish. Its wide range of finishes, colors, and accessories allows limitless customization for seamless integration with any architectural style.

DUO TOP is the perfect balance between design, safety, and everyday comfort.

Optional colors

  • RAL 7016

  • RAL 9016

  • RAL 9006

  • RAL 9007

  • RAL 9005

  • Golden oak

  • Dark oak

Contact us
White house with a garage closed by a white door.White house with a garage closed by a white door.
Maximum SecurityMaximum Security

Maximum Security

Springs, cables, and rollers are protected and inaccessible.

Custom-MadeCustom-Made

Custom-Made

Wide range of curtain finishes: Woodgrain, Smooth, or Stucco. With or without grooves.

Premium integrated Pass DoorPremium integrated Pass Door

Premium integrated Pass Door

Multipoint lock, wireless security system, and finger-safe protection.

Our models

  • Smooth without grooves

  • Single-grooved

  • Grooved

Technical Information
    • Maximum opening width: 5000 mm.
    • Maximum opening height: 2490 mm.
    • Curtain made of ""sandwich"" panels with steel sheets on both sides, injected with CFC-free PIR polyurethane foam, offering excellent insulation.
    • Fingersafe panels.
    • Foam fire resistance classification: B s2 d0.
    • Panel thickness: 42 mm.
    • Interior face: Micro-grooved Stucco | Color: white RAL 9002.
    • Exterior face: Smooth, woodgrain, grooved, or single-grooved.
    • Standard finishes or custom RAL colors available as an option.
    • Side and intermediate hinges in galvanized steel.
    • Curtain counterbalancing by galvanized and coated torsion springs located at the lintel or by tension springs on the horizontal tracks.
    • Fasteners and structure in galvanized steel.
    • End caps fully cover and protect the tracks (cables and rollers not accessible).
    • Nylon rollers with galvanized steel shaft and bearings.
    • Perimeter sealing ensured by lip seals.
    • Bottom sealing ensured by a compression seal.
    • Minimum headroom: 200 mm (torsion) or 140 mm (tension).
    • Minimum side room: 85 mm.
    • Manual or motorized operation (push-pull motor).
    • Many options available: glazed sections, windows, lock, etc.
    • Integrated passdoor available as an option.
    • CE certified product according to standard NF EN 13241-1.
  • Documents for residentials
    French Accessories Residentials(PDF, 1 MB)
    French Technical Brochure Residentials(PDF, 1 MB)
    French Brochure YALE GO(PDF, 1 MB)
    French Sales Brochure Residentials(PDF, 4 MB)
