Smooth Operation
Double rollers with ball bearings.

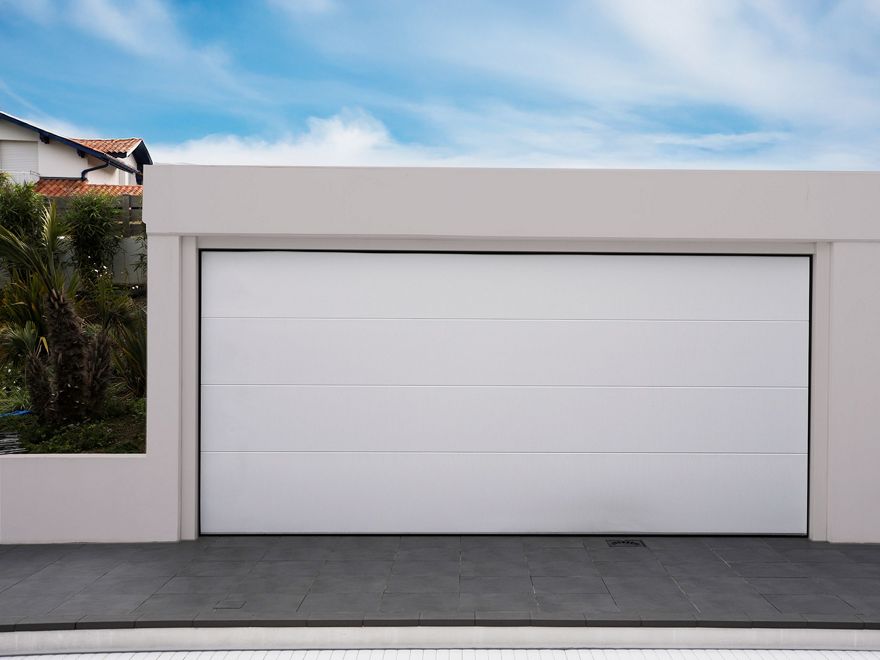

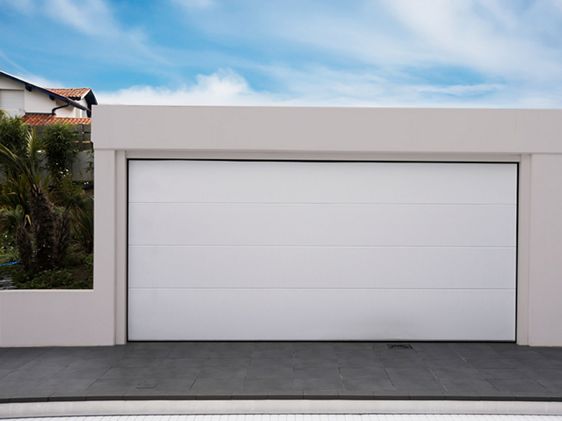

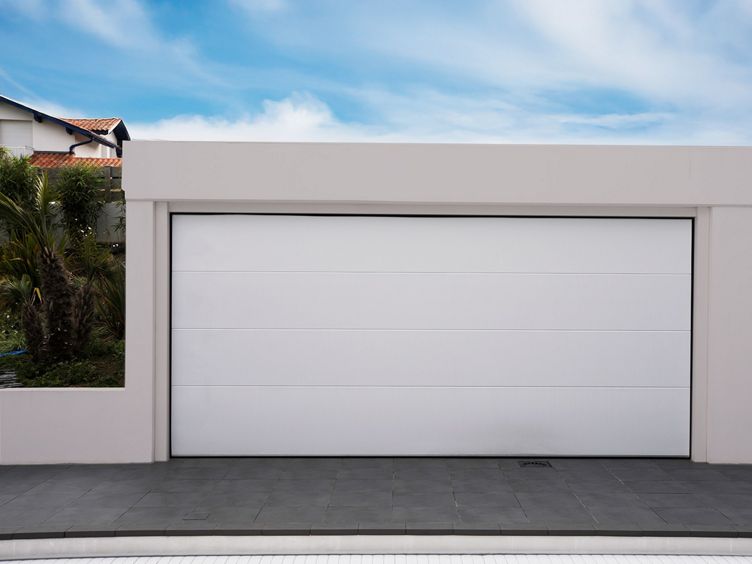

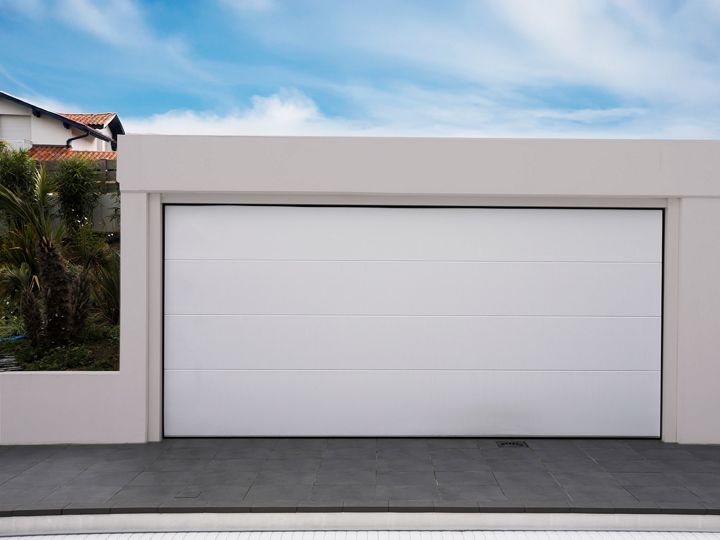

DUO 160
DUO 160: garage door with torsion springs mounted at the lintel.
The DUO 160 garage door combines ease of use, security, and aesthetics. Its torsion spring system mounted at the lintel allows for easy installation, even in tight spaces.
Custom-made and available in manual or motorized versions, it offers great dimensional flexibility and fits perfectly into any residential project.
Equipped with double-skin steel panels injected with polyurethane foam, it provides excellent thermal insulation. With an optional integrated wicket door, it offers enhanced daily convenience.
Its wide range of finishes, colors, and accessories allows for limitless customization, ensuring seamless integration with any architectural style.
Quiet, sturdy, and built to last, this door is the ideal solution for a worry-free garage installation.
Optional colors
RAL 7016
RAL 7022
RAL 7039
RAL 9016
Golden oak
Dark oak
Large Dimensions
Up to 6000mm wide and 15 m² surface area.
Connected
Motorization with Integrated Smart Home Ecosystem. Control your garage door with your smartphone.
Our models
Smooth without grooves
Single-grooved
Grooved
Technical Information
- Maximum day light width: 6000 mm.
- Maximum day light height: 3000 mm.
- Maximum surface area: 15 m².
- Curtain made of ""sandwich"" panels with steel sheets on both sides, injected with CFC-free PIR polyurethane foam, offering excellent insulation.
- Fingersafe panels.
- Foam fire resistance classification: B s2 d0.
- Panel thickness: 40 mm.
- Interior face: Stucco-grooved (groove spacing: 100 mm) | Color: white RAL 9016.
- Exterior face: Smooth, textured, grooved, or single-grooved.
- Standard finishes or custom RAL colors available as an option.
- Side and intermediate hinges made of galvanized steel.
- Fasteners and structure in galvanized steel.
- White end caps.
- Double nylon rollers with galvanized steel shaft and bearings.
- Perimeter sealing ensured by lip seals.
- Bottom sealing ensured by a compression seal.
- Minimum headroom: 160 mm.
- Minimum side room: 80 mm.
- Manual or motorized operation (push-pull motor).
- Many options available: glazed sections, windows, lock, etc.
- Integrated passdoor available as an option.
- Water penetration: Class 2.
- Air permeability: Class 2.
- CE-certified product according to standard NF EN 13241-1.
