Modern Design
Straight tubes and curved rods provide a refined look.
TUBOTUBE

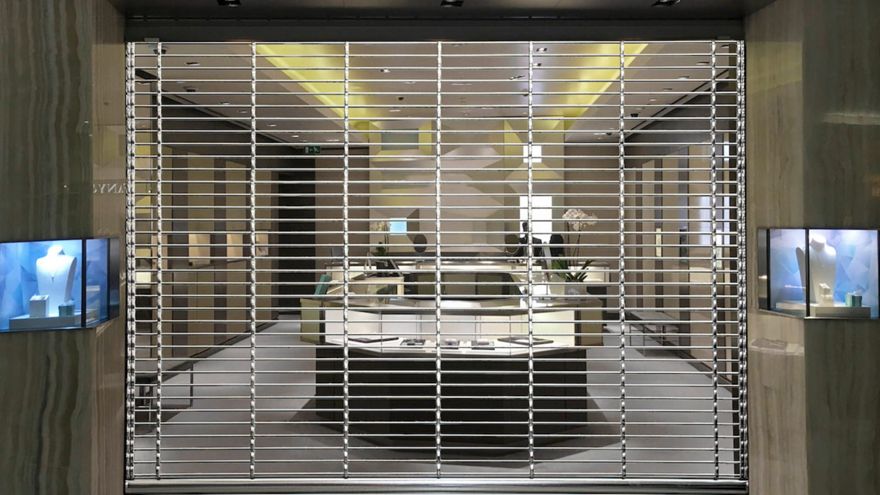

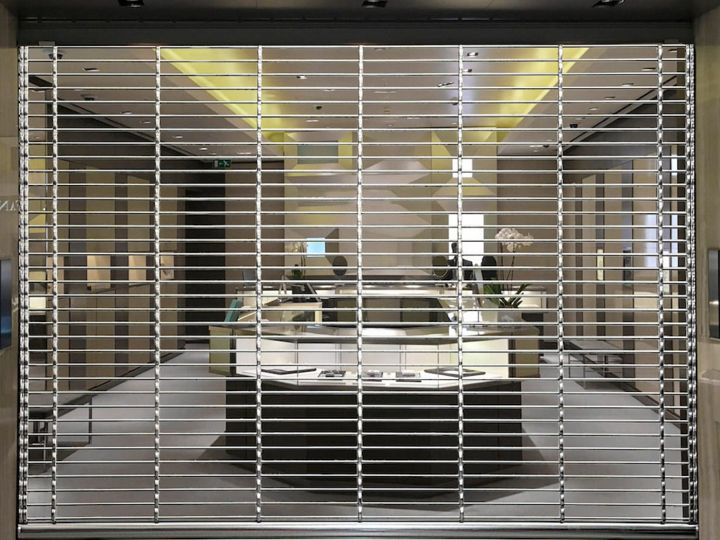

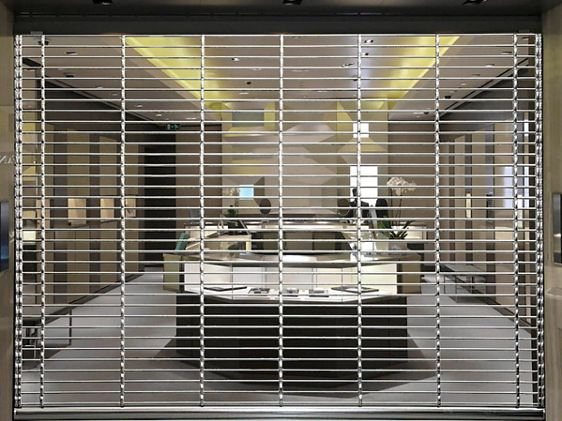

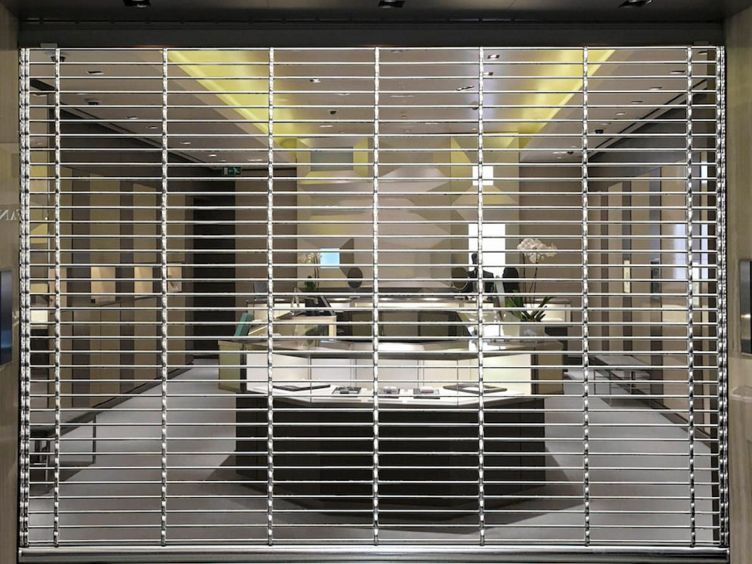

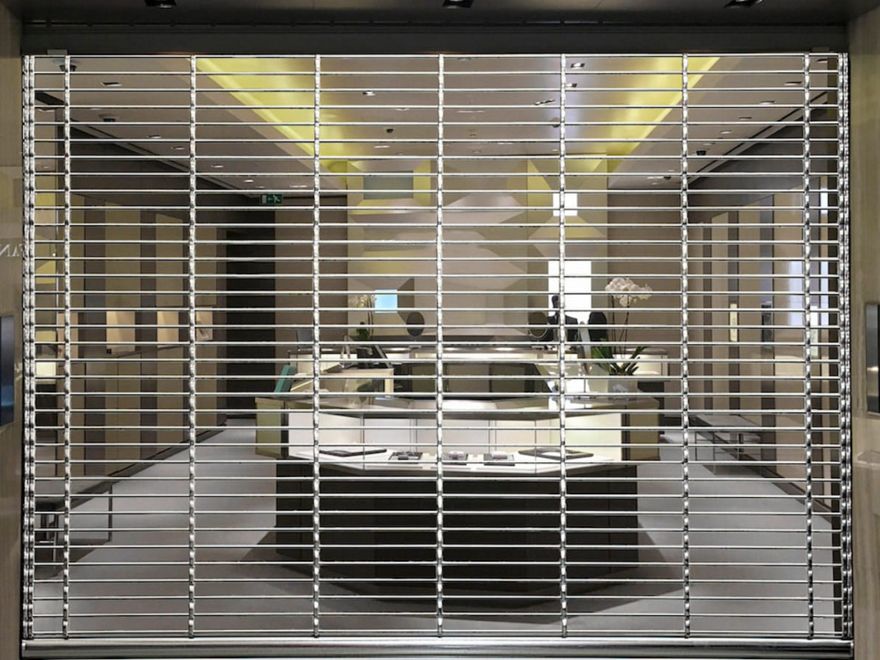

TUBOTUBE: Steel rolling grille offering reliable protection and maximum storefront visibility.
The TUBOTUBE steel rolling grille is the ideal solution for effectively securing your store while maintaining optimal visibility of your storefront.
Designed specifically for commercial use, it combines strength and aesthetics through its openwork design that allows light to pass through and showcases your products even when the store is closed.
Available in standard or reinforced versions, the TUBOTUBE grille adapts to your specific needs, offering an excellent balance between protection and transparency. Its carefully engineered structure ensures strong resistance to intrusion while remaining discreet.
With a range of motorization options, it delivers smooth operation tailored to your opening and closing frequency thanks to its high speed, whether occasional or intensive.
Easy to install and maintain, TUBOTUBE is a reliable choice for retailers who prioritize both security and the visual appeal of their storefront. Protect your business while enhancing your commercial space with this efficient and elegant solution.
Optional colors
Galva
Rigidity
Thanks to the rods secured by circlips.
Customizable
RAL powder-coating available.
Our models
TUBOTUBE Simple
TUBOTUBE Reinforced
Technical Information
- Up to 13,500 mm wide*.
- Up to 13,000 mm high*.
- The curtain is made of straight 14 mm galvanized steel tubes connected by galvanized steel links (1.5 mm thick)..
- The spacing between the tubes is 63 mm.
- The curtain can be powder-coated as an option (up to 6500 x 3500 mm).
- Nylon end caps prevent lateral displacement of the tubes and reduce noise from contact with the side guides.
- Reinforced bottom slat made of 2 mm thick galvanized steel, 130 mm high.
- Two types of curtains: Tubotube S (links spaced 400 mm apart | 8 kg/m²) andTubotube R (links spaced 200 mm apart | 10 kg/m²).
- Side guides are also made of 2 mm (20/10e) cold-formed galvanized steel and can be powder-coated (optional).
- Various side guides mounting options available, with optional sealing gaskets.
- Multiple available options: Roll-up cover box (depending on configuration), lock, etc.
- Wide range of operation types: Manual, Central motor, tubular motor, direct drive, or chain drive.
- Operating mode available: Deadman control.
- CE-certified product in compliance with standard NF EN 13241-1.
- For other dimensions, please contact us.
Documents for roller shutters and extendable grilles
Type of operations
Manual operation
The manually operated roller shutter is a simple and cost-effective solution for securing commercial or industrial premises. It works without any motor, using built-in spring compensation in the shaft for smooth operation and minimal maintenance. Ideal for occasional use.
Central motor
The counterbalanced roller shutter with central motor is a reliable and cost-effective solution for securing commercial or industrial premises. Equipped with a 220V motor mounted directly on the shaft and compensation springs, it allows for easy operation. Easy to install and low-maintenance, it is ideal for standard projects.
Tubular motor
The tubular motor roller shutter is a discreet and efficient solution, ideal for low-intensity use. Its motor, integrated into the rolling shaft, saves space while ensuring smooth operation—even for large dimensions. Reliable and easy to maintain, it adapts to a wide range of configurations.
Direct drive motor
The roller shutter with direct drive motor is ideal for large dimensions and intensive use. Its side-mounted motor, directly coupled to the shaft, ensures powerful and consistent operation. Robust and durable, it also simplifies maintenance thanks to easy access.
Chain-operated motor
The roller shutter with chain-driven motorization is a robust and reliable solution, especially suited for very large sizes. Its side-mounted motor drives the winding shaft through a chain and sprocket system, ensuring efficient and powerful transmission. Ideal for industrial or logistics environments.
