Reliability
High-quality materials: curtain, motorization, and accessories.

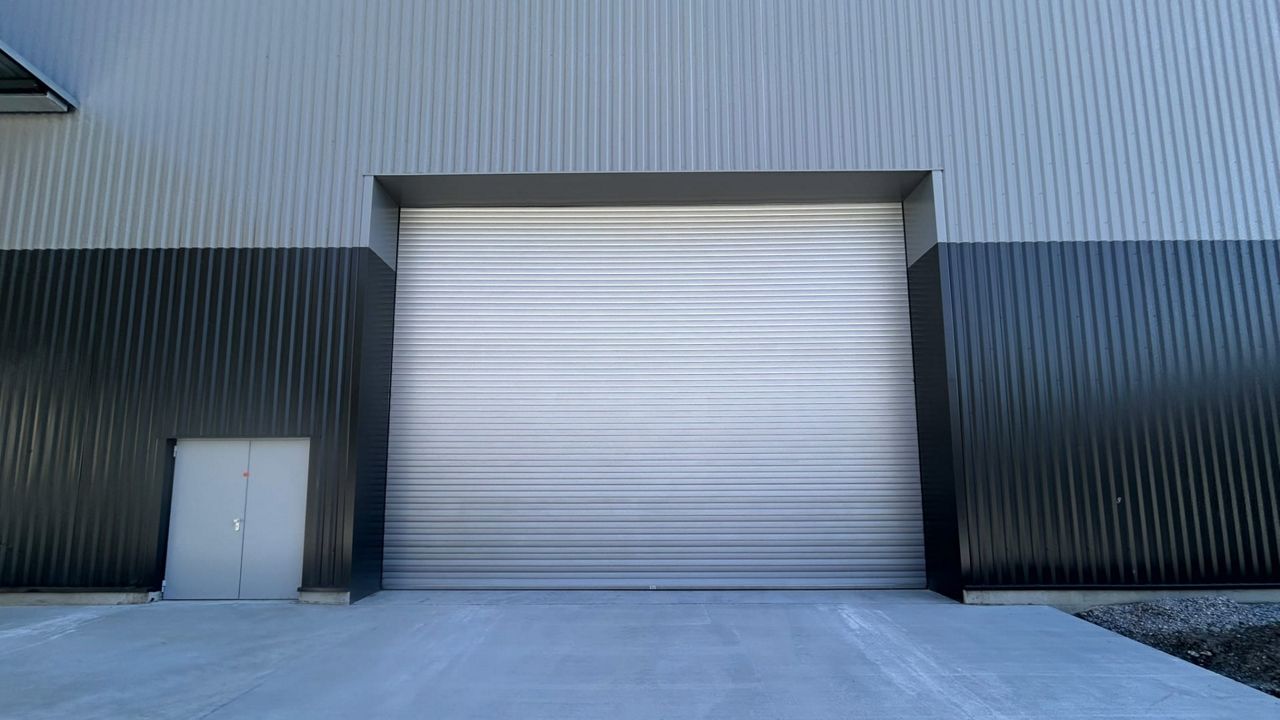

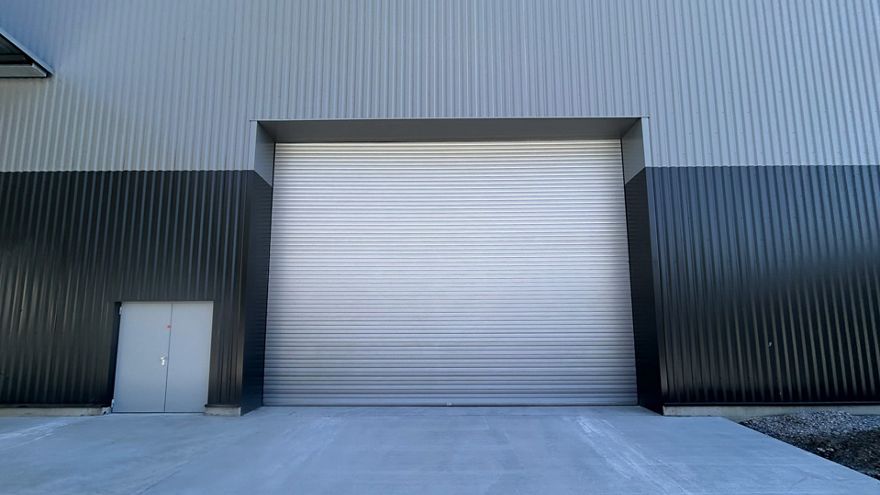

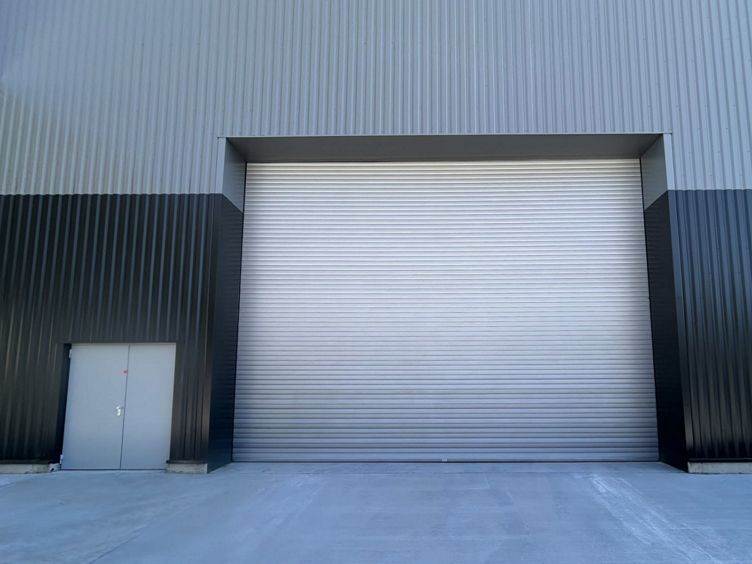

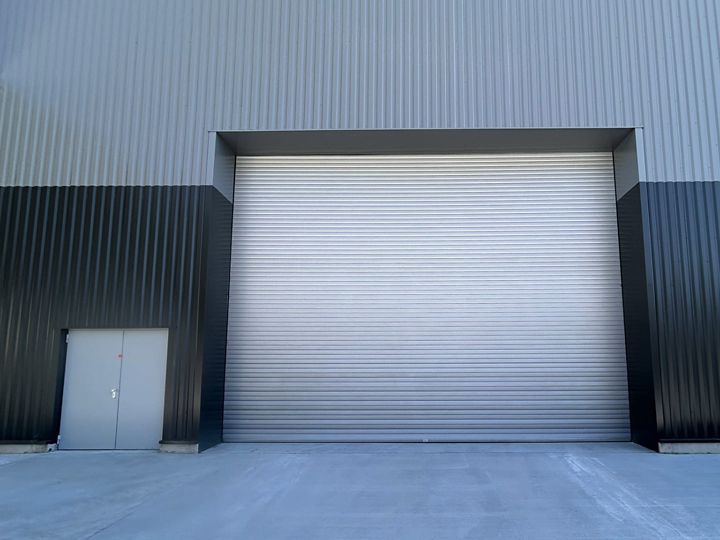

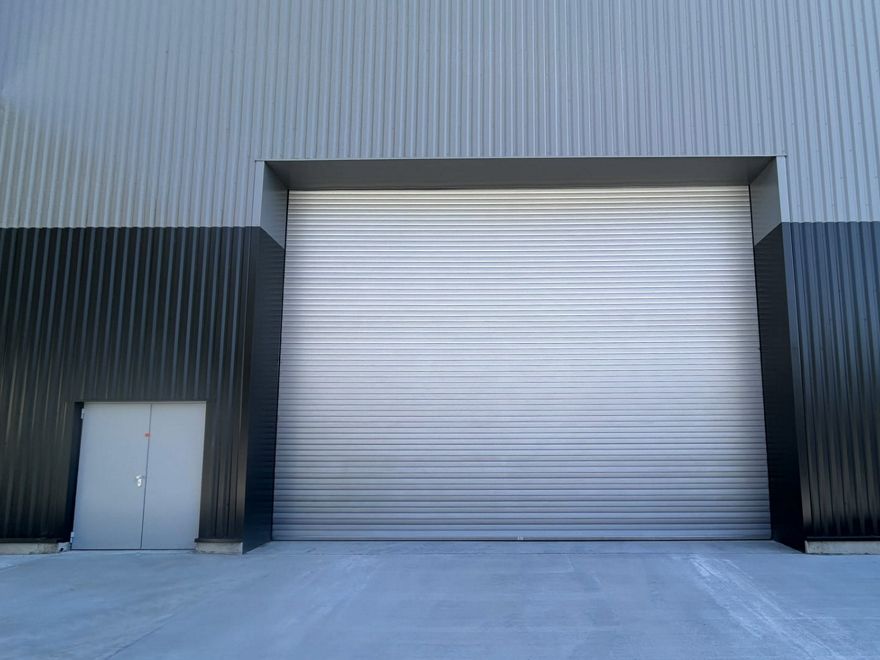

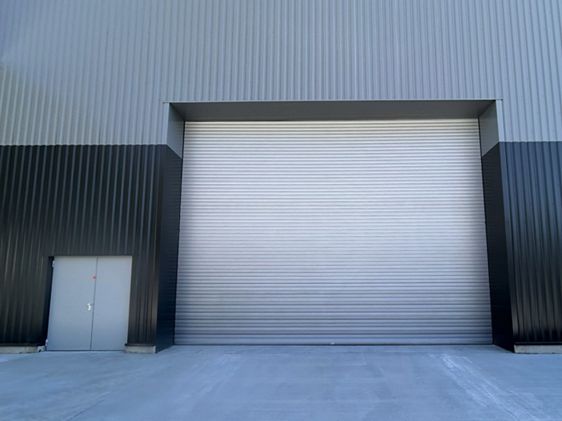

DP106 ISEA Fast Roller shutter
DP106 ISEA FAST: double skin roller shutter combining insulation and high-speed operation.
The DP106 ISEA FAST insulated roller shutter is the ideal solution for industrial buildings where speed, security, and energy efficiency are essential.
With its high-speed opening and automatic operation, it streamlines frequent access while reducing heat loss—a key advantage in high-traffic environments.
Built to last, this model offers excellent thermal and acoustic insulation, outstanding durability, and quiet operation, even on large openings. Its double skin curtain filled with insulating foam ensures intensive use with maximum reliability and comfort for users.
The DP106 ISEA FAST combines performance, security, and time savings, while fully complying with current European standards.
A professional-grade solution designed to optimize the daily operations of industrial facilities.
Optional colors
RAL 9016
RAL 7016
RAL 9006
Galva
Speed
Thanks to the variable frequency motor and non-contact safety barriers.
Versatility
Insulated and fast, it can replace both a roller shutter and a rapid roll-up door on its own.
Technical Information
- Maximum opening dimensions*: DLW5500 x DLH5000 mm.
- The curtain is made of insulated double-skin steel slats (0.4 mm thick) injected with polyurethane foam, for a total thickness of 20 mm (11,5 kg/m²).
- The slats feature a micro-ribbed finish on the exterior face.
- Their design provides both thermal and acoustic insulation.
- Final slat is double-walled, made of natural aluminum, and equipped with a sealing gasket.
- Standard finishes: Galvanized, Grey RAL 7016, Grey RAL 9006, White RAL 9016.
- Side guides are also made of 2 mm (20/10e) cold-formed galvanized steel and can be powder-coated (optional).
- Various side guides mounting options available; guides can also be equipped with seals.
- Multiple options available: roll-up cover box (depending on configuration), lock, vision panels, wind-resistant system, etc.
- 220V direct-drive motor with frequency inverter for speed and acceleration control.
- Shaft mounted on sliding brackets for smoother and quieter operation.
- Operating modes: pulse (optional) or automatic (optional) with safety light curtains.
- CE certified product in compliance with NF EN 13241-1.
- Other dimensions: on request.
Documents for roller shutters and extendable grilles
Type of operations
Direct drive motor
The roller shutter with direct drive motor is ideal for large dimensions and intensive use. Its side-mounted motor, directly coupled to the shaft, ensures powerful and consistent operation. Robust and durable, it also simplifies maintenance thanks to easy access.
