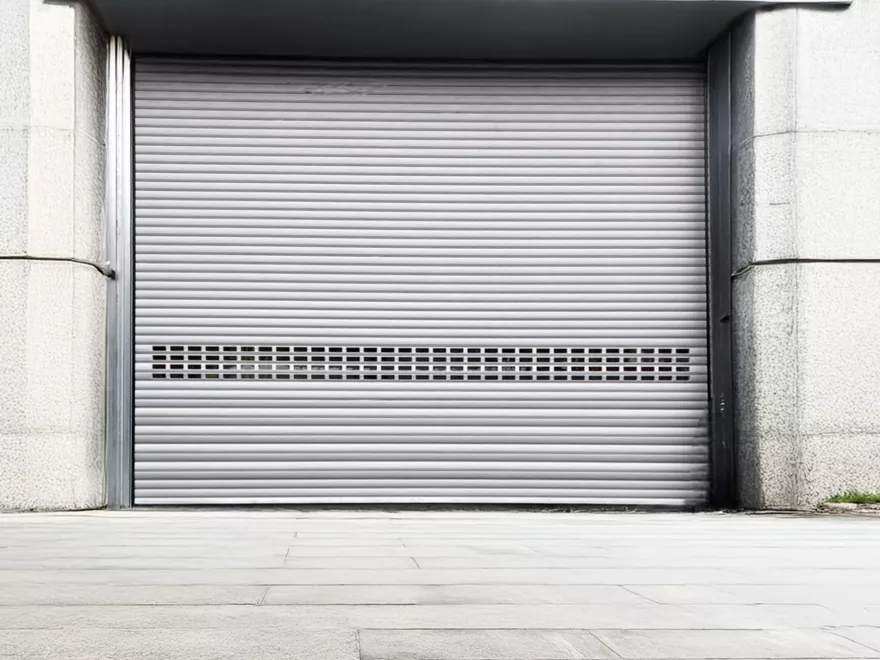

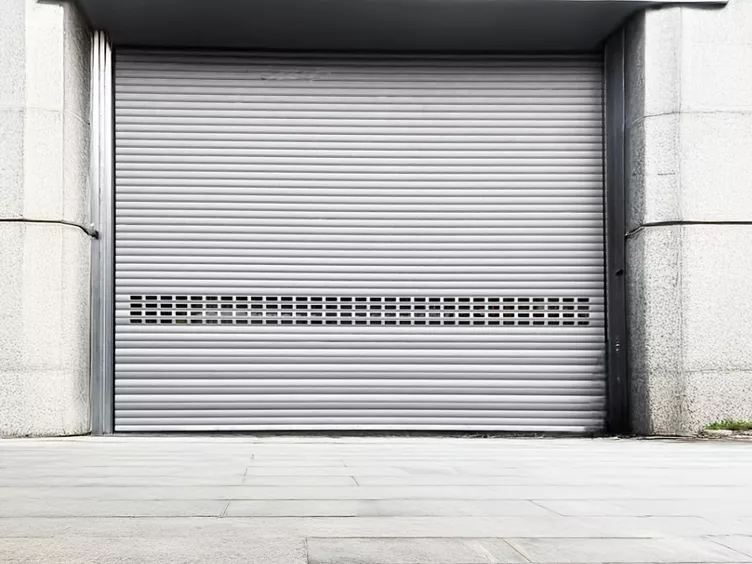

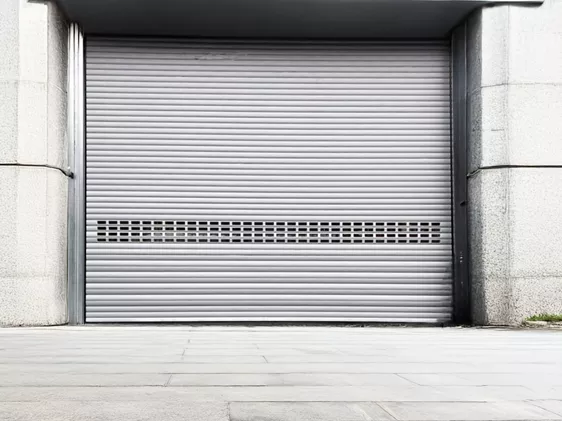

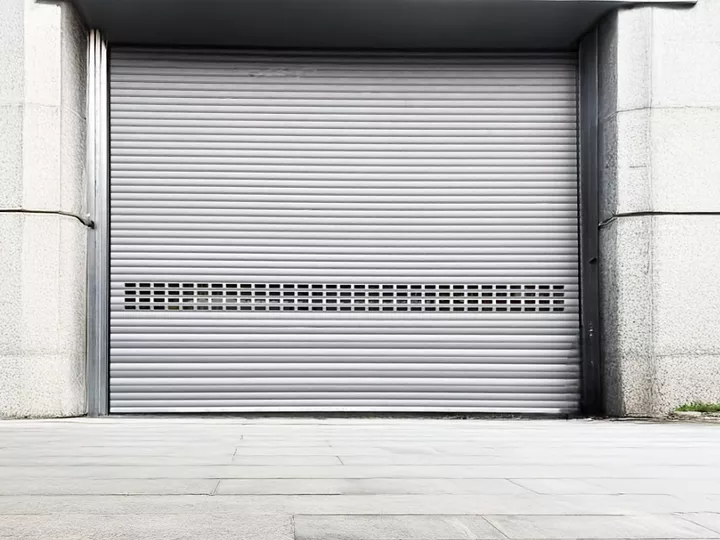

DP106 Roller shutter

DP106 Roller Shutter – closure solution with enhanced thermal and acoustic insulation.

The DP106 Roller Shutter is specifically designed to meet the demands of industrial buildings in terms of both security and insulation.

Its double-skin steel structure, injected with polyurethane foam, provides excellent thermal and acoustic performance. With 20 mm thick slats, it effectively protects interiors while reducing heat loss and noise disturbance.

Thanks to its compact roll-up system, the DP106 can be installed easily even in space-constrained environments, while still covering large openings. It’s a reliable solution combining comfort, energy efficiency, and secure access.

With its clean, minimalist design, the shutter blends seamlessly into any industrial façade, and its standard finishes allow for fast adaptation to common configurations.

Optional colors

RAL 9016
RAL 7016
RAL 9006
Galva

Insulation
20mm thick slats injected with insulating foam.
Quiet Operation
Operating noise is reduced thanks to foam-filled slats and guides equipped with seals.
Customization
4 available colors: Galvanized, 7016, 9006, or 9010. Window option available.

Technical Information

Up to 13,500 mm wide*.
Up to 13,000 mm high*.
The curtain is made of insulated double-skin steel slats (0.4 mm thick) injected with polyurethane foam, for a total thickness of 20 mm (11,5 kg/m²).
Their design provides both thermal and acoustic insulation.
The slats feature a micro-ribbed finish on the exterior side.
Final slat is double-walled, made of natural aluminum, and equipped with a sealing gasket.
Standard finishes: Galvanized, Grey RAL 7016, Grey RAL 9006, White RAL 9016.
Side guides are made of 2 mm (20/10e) cold-formed galvanized steel and can be powder-coated (optional).
Various side guides mounting options are available; they can also be equipped with seals.

Multiple available options: Roll-up cover box (depending on configuration), lock, nylon end caps, storm protection system, etc.
Wide range of operating types: manual, central motor, tubular motor, direct-drive or chain-driven.
Available operating modes: hold-to-run, pulse (optional), or automatic (optional).
Various A2P (anti-intrusion) certifications available as an option.
Product CE certified in compliance with standard NF EN 13241-1.
Wide range of operation types: Manual, Central motor, tubular motor, direct drive, or chain drive.
Operating modes available: Deadman control, pulse control (optional), or automatic (optional).
Various A2P anti-intrusion classifications available as options.
CE-certified product in compliance with standard NF EN 13241-1.
For other dimensions, please contact us..

Type of operations

Manual operation
The manually operated roller shutter is a simple and cost-effective solution for securing commercial or industrial premises. It works without any motor, using built-in spring compensation in the shaft for smooth operation and minimal maintenance. Ideal for occasional use.
Central motor
The counterbalanced roller shutter with central motor is a reliable and cost-effective solution for securing commercial or industrial premises. Equipped with a 220V motor mounted directly on the shaft and compensation springs, it allows for easy operation. Easy to install and low-maintenance, it is ideal for standard projects.
Tubular motor
The tubular motor roller shutter is a discreet and efficient solution, ideal for low-intensity use. Its motor, integrated into the rolling shaft, saves space while ensuring smooth operation—even for large dimensions. Reliable and easy to maintain, it adapts to a wide range of configurations.
Direct drive motor
The roller shutter with direct drive motor is ideal for large dimensions and intensive use. Its side-mounted motor, directly coupled to the shaft, ensures powerful and consistent operation. Robust and durable, it also simplifies maintenance thanks to easy access.
Chain-operated motor
The roller shutter with chain-driven motorization is a robust and reliable solution, especially suited for very large sizes. Its side-mounted motor drives the winding shaft through a chain and sprocket system, ensuring efficient and powerful transmission. Ideal for industrial or logistics environments.
