High Insulation
80 mm sandwich panels.
U-value of 1.5 W/m²·K for a 3000 x 3000 mm door.

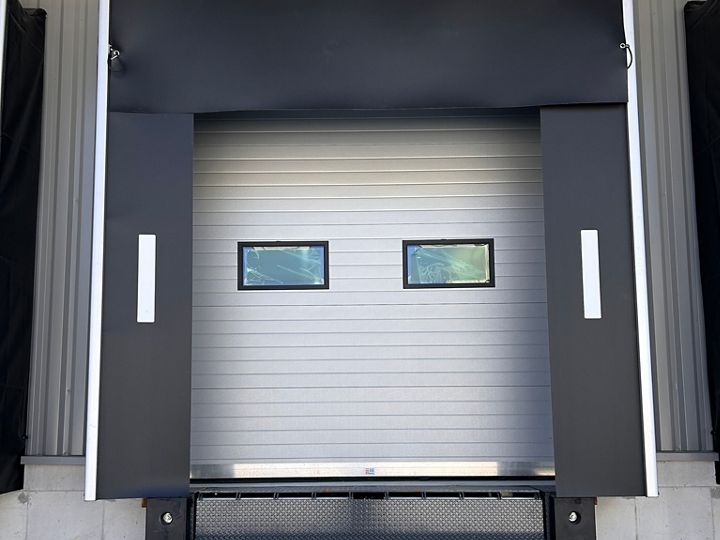

ISO V80 industrial sectional door
ISO V80: a robust sectional door solution with highly insulated panels for industrial buildings.
The ISO V80 industrial sectional door is the ideal solution for buildings requiring a high level of thermal insulation. With 80 mm thick panels injected with polyurethane foam, it delivers outstanding airtightness and thermal comfort while ensuring security for the premises. Its double skin galvanized steel construction guarantees strength and durability.
Available in low, standard, high or vertical lift configurations, the ISO V80 sectional door adapts to various building layouts. Designed to integrate seamlessly into industrial environments, it is suitable for warehouses, workshops, and logistics platforms alike.
Reliable, robust, and compliant with the NF EN 13241-1 standard, the ISO V80 door is the top choice for high thermal performance without compromising on security.
Optional colors
RAL 9016
Stainless Steel Option
Hardware and tracks available in stainless steel upon request.
Custom Finish
80mm panels can be powder-coated in any RAL color.
Our models
Normal lift
High lift
Vertical lift
Low headroom
Technical Information
- Standard opening dimensions*: DLW7000 x DLH7000 mm.
- Various track types: Standard, high lift, vertical, or low headroom.
- Track angle: 0° to 40°.
- Curtain made of “sandwich” panels, steel sheet on both sides, injected with CFC-free polyurethane foam for excellent insulation.
- Panel thickness: 80 mm.
- Thermal resistance: U = 1.05 W/m²·K for a DLW3000 x DLH3000 door.
- Sound insulation: 25 dB.
- White stucco grooved finish on both sides (groove spacing: 100 mm).
- Panels RAL coating as an option.
- Panel height: 610 mm.
- Side and intermediate hinges: Galvanized steel.
- Curtain balance: Galvanized and coated torsion springs (20,000 cycles).
- Rollers: Nylon with galvanized steel shaft and bearing.
- Stainless steel hardware and tracks available as an option.
- Full perimeter sealing with lip seals.
- Bolted galvanized steel guide tracks with spreader bar (up to 7000 mm wide).
- Types of operation: Manual, chain hoist or motorized.
- GfA motors: 220V single-phase or 380V three-phase with chain hoist emergency operation (standard) or cord release (optional).
- Control box: GfA TS971, wall-mounted with electronic limits switch.
- Operating modes: Dead-man, impulse, or fully automatic (optional).
- Safety system: Light curtains (depending on configuration).
- Many options available: Glazed sections, windows, locks, etc.
- Spring break and adjustable cable safety devices (depending on configuration).
- CE certified product according to standard NF EN 13241-1.
- *For other dimensions, please contact us.
