Aesthetic and Customizable
The standard roll-up box and aluminum side guides are available in various standard colors.
Miniroll

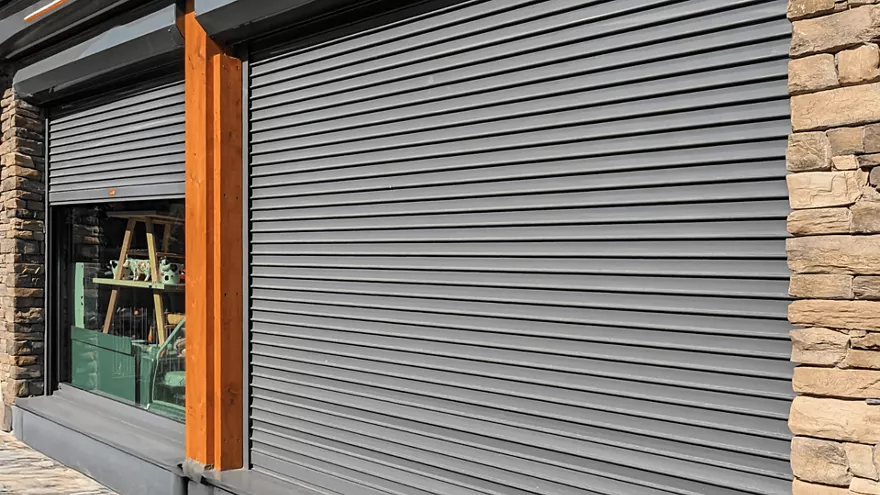

Miniroll: A closure solution combining the sleek look of a discreet roller shutter with the strength of a reinforced steel rolling grille.
The MiniRoll is a compact and elegant solution, ideal for securing shops and garages while blending discreetly into existing architecture. It features the design of a traditional roller shutter, with an aluminium box and side guides, combined with a highly durable 8/10 galvanized steel curtain.
Available in a micro-perforated version, it offers partial visibility of products in the window even when closed. Perforations are limited to the visible area of the curtain, providing transparency while preserving strength and eliminating any risk of tearing. Thanks to its reduced slat pitch, the MiniRoll allows for compact rolling.
Easy to integrate, it is perfectly suited for configurations with limited space, without compromising on security. This model combines aesthetics, functionality, and robustness to meet the closure needs of a wide range of professionals and private customers.
Optional colors
RAL 7016
Galva
Robustness
0.8mm steel slats with A2P CR2 certification.
Compact Design
80mm aluminum guides and 250mm box.
Our models
Miniroll 8/10e Standard
Miniroll 8/10e Rubis
Technical Information
- Maximum opening dimensions*: W4250 x H3250 mm.
- The curtain is made of galvanized horizontal steel slats with a 57 mm height.
- The low slat height allows for reduced roll-up diameters.
- Reinforced bottom slat made of 1.5 mm thick galvanized steel, 100 mm high.
- Two slat types available: Solid 0.8 mm (11 kg/m²) or Rubis 0.8 mm micro-perforated (10 kg/m²).
- Standard pre-coated finishes for the curtain, side guides, and rull-up cover: White RAL 9010, Grey RAL 7016, or Grey RAL 9006 (RAL powder coating available as an option).
- Aluminum side guides (80x28 or 105x35) with anti-noise seals ensure both aesthetics and quiet operation.
- 250 mm chamfered endplates fit directly into the side guides and support a folded steel roll-up cover (standard).
- Tubular motor with safety brake on the opposite side.
- Manual operation via crank in case of power failure (optional).
- Non-intensive use (Maximum two cycles per hour).
- Operating modes: Impulse (optional) or automatic (optional) with safety light curtains.
- CE certified product in accordance with NF EN 13241-1.
- Other dimensions available on request.
Documents for roller shutters and extendable grilles
Type of operations
Miniroll
The Miniroll is a reinforced roller shutter with galvanized steel slats and tubular motorization, providing optimal security with a compact design. Its box and guides are made of pre-coated aluminum, ensuring a neat and durable finish. Ideal for residential or commercial environments combining security and aesthetics.
