ISEAVIEW sectional door

ISEAVIEW sectional door: easthetic industrial closure with maximum visibility.

Designed to provide optimal brightness without compromising security, the ISEAVIEW sectional door stands out with its fully glazed curtain. Its sleek design makes it a popular choice for industrial spaces where light, visibility, and building aesthetics are key concerns.

It adapts to all configurations thanks to various rails and a wide range of finish options. Glazing can be selected in clear or opaque versions depending on needs related to exposure, privacy, or visual appeal. The lacquered aluminum frame ensures strength, lightness, and long-term durability.

The ISEAVIEW door is ideal for showrooms, garages or any space where design matters as much as functionality.

In addition to its aesthetic qualities, it offers long-lasting performance, effective insulation, and a high level of user comfort.

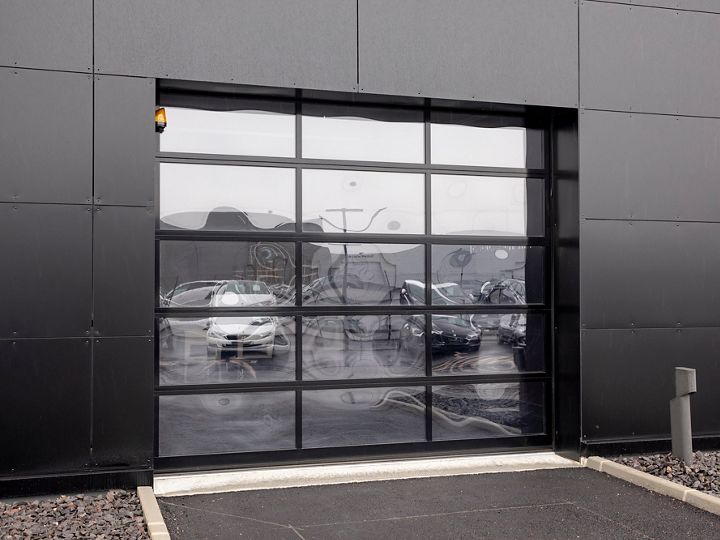

Black building seen from the side, with a fully glazed, closed door.

Modern Design
Thanks to the fully glazed curtain.
Integrated Pass Door
Quick access with the optional built-in pass door.
Enhanced Safety
Non-contact obstacle detection using light curtains.

Our models

Normal lift
High lift
Vertical lift
Low headroom

Technical Information

Standard opening dimensions*: DLW7000 x DLH7000 mm.
Available track types: Standard, high lift, vertical, or low headroom.
Track slope: 0° to 40°.
The curtain is composed of glazed sections made with coated aluminum tubular profiles without glazing beads.
Multiple glazing types are available: single or double, acrylic or polycarbonate, clear or opaque (30% or 80% light transmission).
The height of these glazed sections ranges from 400 to 750 mm, depending on the door height.
Glazed sections thickness: 42 mm.
Finish of glazed sections: Custom RAL.
Side and intermediate hinges: Galvanized steel.
Curtain balance: Galvanized and coated torsion springs (20,000 cycles).
Rollers: Nylon with galvanized steel shaft and bearing.
Stainless steel rails and hardware available as an option.
Full perimeter sealing with lip seals.

Bolted galvanized steel guide tracks with spreader bar (up to 7000 mm wide).
Operation types: Manual, chain hoist, or motorized.
GfA motorization: 220V single-phase and 380V three-phase, with chain hoist emergency operation (standard) or cord release (optional).
Control unit: GfA TS971, mounted at hand height, with electronic limit switch adjustment.
Operating modes: Dead-man, impulse, or automatic (optional).
Safety: Light curtains (depending on configuration).
Many options available: Glazed sections, windows, locks, etc.
Optional integrated pedestrian door available.
Spring break and adjustable cable safety devices (depending on configuration).
CE certified according to standard NF EN 13241-1.
For other dimensions, please contact us.
